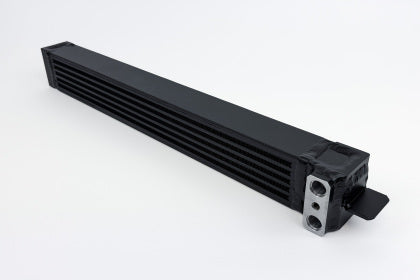

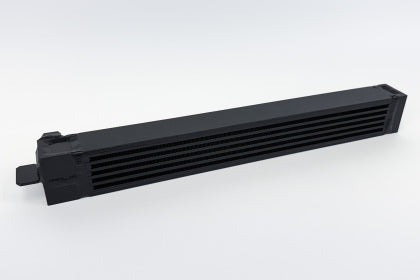

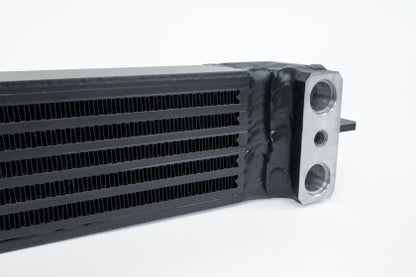

The original oil cooler used Tube and Fin construction. While this is acceptable for cooling performance, it is not a very robust design. CSF chose to go with a Bar and Plate construction to improve durability. While there is plenty of ground clearance, the cooler is low enough to see some potential abuse on the track. CSF wanted to offer that extra durability of a Bar and Plate cooler for track enthusiasts and those running their car on the lower side.
Features and Benefits
Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow

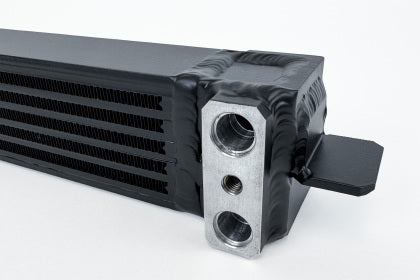

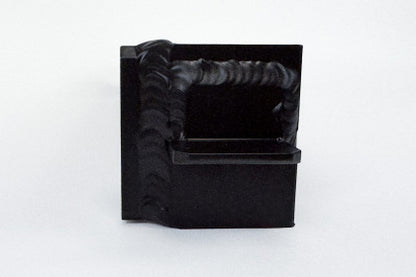

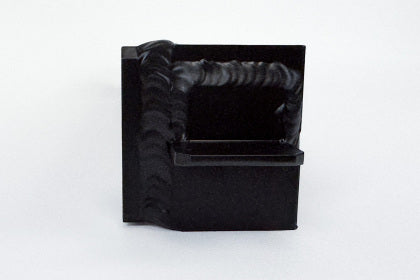

Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability

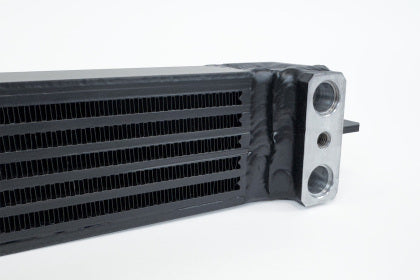

Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
6 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
Designed to Work with OE & CSF All-Aluminum Radiator (CSF #3054)
OE Style Black Finish
Accepts Factory Oil-Line Connections
Mounts using OE Brackets or BimmerWorld Bracket Kit (#TEN3631201)
Uses OE E36 Euro Spec Oil Cooler Lines (Pipe) - BMW PN: 17212227235
